デジタル歯科 & デンタル

Digital dentistry & Dental device

歯科用3Dプリンター

DETAX 3Dプリンター用レジン

3Dプリンターラピッドシェイプでも使用可能な3Dプリンター用歯科材料です。

デジタルデンチャーの作製方法を配信中!

既製人工歯を使用したデジタルデンチャーの作製方法を配信しています。こちらに関する詳細記事は「DIGITAL DENTISTRY YEARBOOK 2022」に掲載中です。

exocad、3Dプリンターによる『フルデジタルデンチャー』作製の様子を配信しています。


〈episode1〉exocad編


〈episode2〉3Dプリンター編

歯科評論2021年10月号掲載 「ついに始動!フルデジタルデンチャー」

 マスターモデル

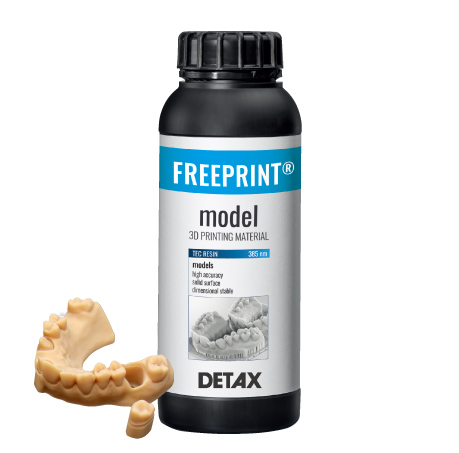

Freeprint® model

項目規格単位測定値
曲げ強度DIN EN ISO 178※1MPa>70
曲げ弾性率DIN EN ISO 178※1MPa>1500
硬度Shore D>80

※1 Plastics: Determination of fl exural properties (in accordance with the norm at room temperature)



製品番号製品名
03778Freeprint® model UV sand
03780Freeprint® model UV ivory
03782Freeprint® model UV grey

製品名:Freeprint 3D Printer材料
医療機器届出番号:13B1X10100000068

 マスターモデル

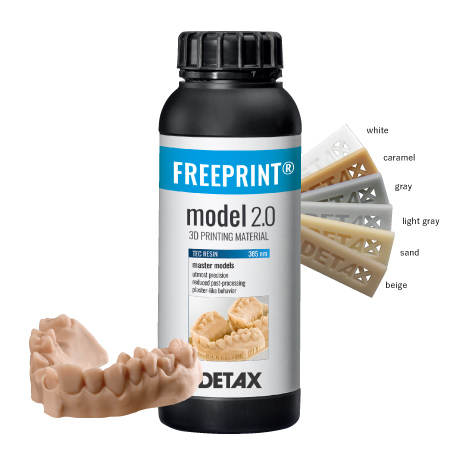

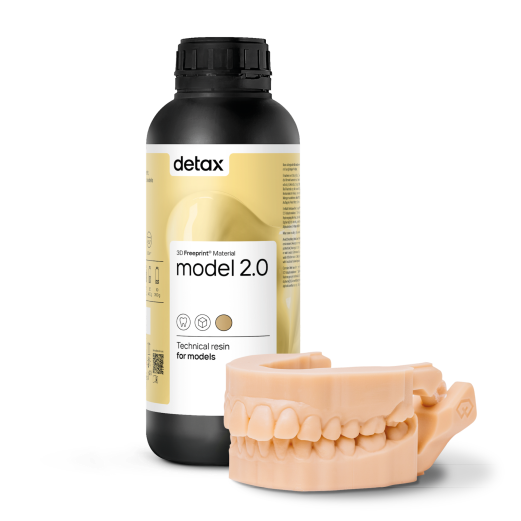

Freeprint® model 2.0

項目規格単位測定値
曲げ強度DIN EN ISO 178※1MPa>80
曲げ弾性率DIN EN ISO 178※1MPa>1700
硬度Shore D>80

※1 Plastics: Determination of fl exural properties (in accordance with the norm at room temperature)



製品番号製品名
02099Freeprint® model 2.0 385 light grey
02177Freeprint® model 2.0 385 grey
02850Freeprint® model 2.0 385 caramel
02148Freeprint® model 2.0 385 white
02128Freeprint® model 2.0 385 sand
02068Freeprint® model 2.0 385 basic beige

※not THF-MA free
製品名:Freeprint 3D Printer材料
医療機器届出番号:13B1X10100000069

 オルソモデル

Freeprint® model T

項目規格単位測定値
シート熱成形時の温度≦195
曲げ強度DIN EN ISO 178※1MPa>80
曲げ弾性率DIN EN ISO 178※1MPa>1700
硬度Shore D>83

※1 Plastics: Determination of fl exural properties (in accordance with the norm at room temperature)



製品番号製品名
02332Freeprint® model T UV

製品名:Freeprint 3D Printer材料
医療機器届出番号:13B1X10100000068

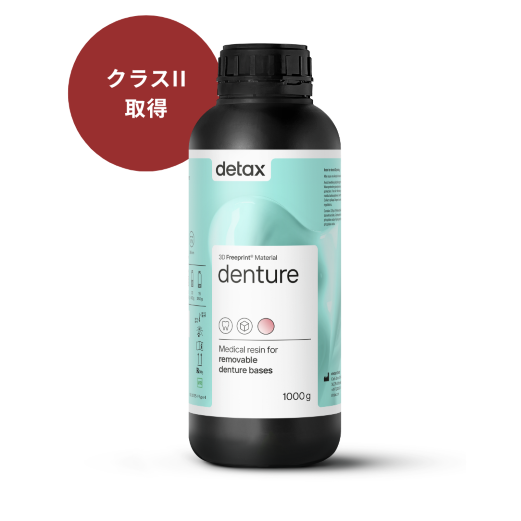

 デンチャーベース

Freeprint® denture

項目規格単位測定値
曲げ強度DIN EN ISO 20795-1※1MPa>110
曲げ弾性率DIN EN ISO 20795-1※1MPa>2500
吸水量DIN EN ISO 20795-1※1μg/mm3<32
溶解量DIN EN ISO 20795-1※1μg/mm3<1.6
硬度Shore D>83
生体適合性DIN EN ISO 10993-1※2 -準拠

※1 Dentistry: Denture base polymers (in accordance with the norm at room temperature)
※2 Biological evaluation of medical devices – Part 1: Evaluation and testing within a risk management process

製品番号製品名
02040Freeprint® denture

製品名:Detax デンチャーベース(freeprint denture)
医療機器認証番号:303AIBZX00019000

 クラウン

Freeprint® temp

項目規格単位測定値
曲げ強度DIN EN ISO 10477※1MPa>100
曲げ弾性率DIN EN ISO 10477※1MPa>2300
吸水量DIN EN ISO 10477※1μg/mm3<40
溶解量DIN EN ISO 10477※1μg/mm3<7.5
硬度Barcol>40
生体適合性DIN EN ISO 10993-1※2 -準拠

※1 Polymer-based crown and bridge materials (in accordance with the norm at room temperature)
※2 Biological evaluation of medical devices – Part 1: Evaluation and testing within a risk management process



製品番号製品名
04062Freeprint® temp UV A1
04063Freeprint® temp UV A2
04064Freeprint® temp UV A3

製品名:Detax テンポラリー(freeprint temp)
医療機器認証番号:303AIBZX00022000

 ガム

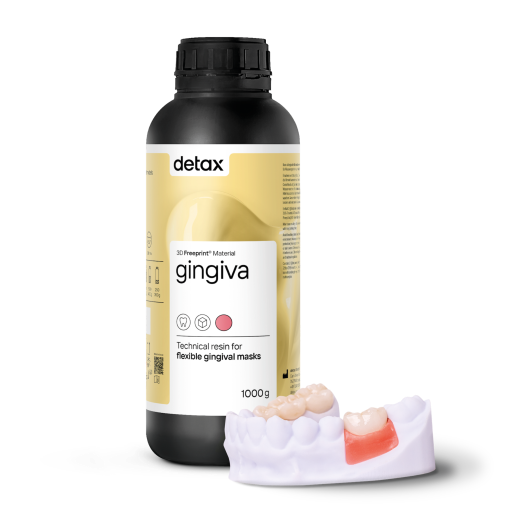

Freeprint® gingiva

項目規格単位測定値
曲げ強度DIN EN ISO 527-1※1MPa>3
曲げ弾性率DIN EN ISO 527-1※1>90%
最終硬度Shore A>70

※1 Plastics: Determination of fl exural properties (in accordance with the norm at room temperature)



製品番号製品名
02843Freeprint® gingiva 385

製品名:Freeprint 3D Printer材料
医療機器届出番号:13B1X10100000069

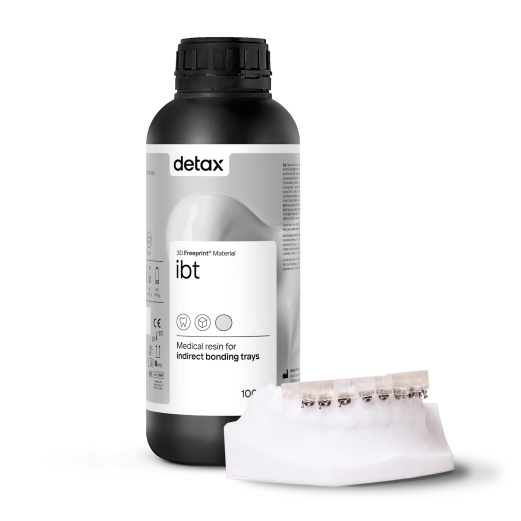

 IBT

Freeprint® IBT

項目規格単位測定値
曲げ強度DIN EN ISO 527-1※1MPa>8
伸長DIN EN ISO 527-1※1MPa>60%
引裂き強度DIN EN ISO 34-1※2N/mm>35
硬度Shore A>90
生体適合性DIN EN ISO 10993-1※3 -準拠

※1 Dentistry: Denture base polymers (in accordance with the norm at room temperature)
※2 Rubber, vulcanized or thermoplastic: Determination of tear strength (in accordance with the norm at room temperature)
※3 Biological evaluation of medical devices – Part 1: Evaluation and testing within a risk management process



製品番号製品名
04249Freeprint® IBT 385

製品名:Freeprint 3D Printer材料
医療機器届出番号:13B1X10100000069

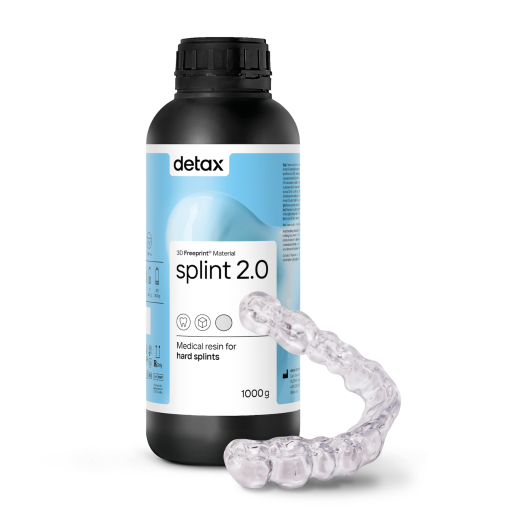

 スプリント

Freeprint® splint 2.0

項目規格単位測定値
曲げ強度DIN EN ISO 20795-2※1MPa>80
曲げ弾性率DIN EN ISO 20795-2※1MPa>2000
吸水量DIN EN ISO 20795-2※1μg/mm3<32
溶解量DIN EN ISO 20795-2※1μg/mm3<5
硬度Shore D>82
生体適合性DIN EN ISO 10993-1※2 -準拠

※1 Dentistry – Part 2: Orthodontic base polymers (in accordance with the norm at room temperature)
※2 Biological evaluation of medical devices – Part 1: Evaluation and testing within a risk management process



製品番号製品名
02076Freeprint® splint 2.0

製品名:Detax 3D Printスプリント用材料
医療機器届出番号:13B1X10100000079

 キャスト

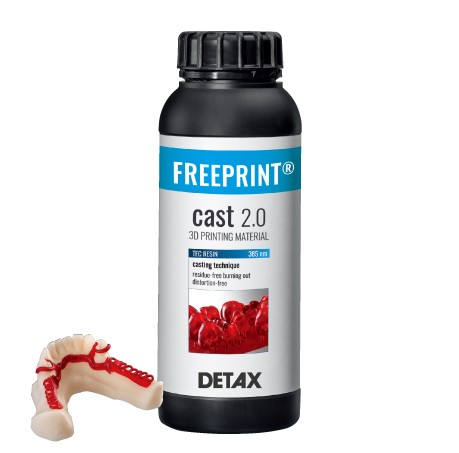

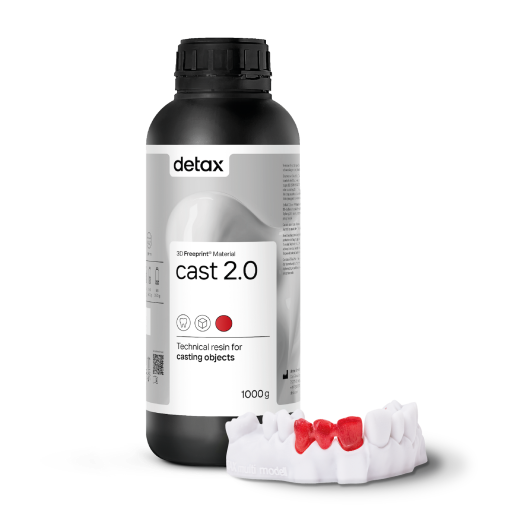

Freeprint® cast

項目規格単位測定値
曲げ強度DIN EN ISO 178※1MPa>70
曲げ弾性率DIN EN ISO 178※1MPa>1700
焼却温度1h@800℃
焼灼残差<0,1%

※1 Plastics: Determination of fl exural properties (in accordance with the norm at room temperature)



製品番号製品名
02632Freeprint® cast 2.0 385

製品名:Freeprint 3D Printer材料
医療機器届出番号:13B1X10100000068

 サージカルガイド

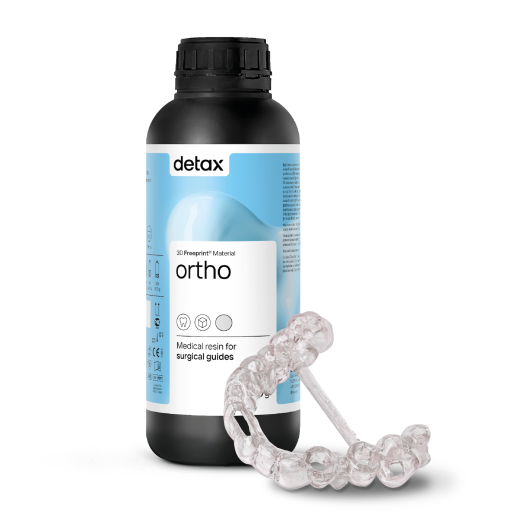

Freeprint® ortho

項目規格単位測定値
曲げ強度DIN EN ISO 20795-2※1MPa>75
曲げ弾性率DIN EN ISO 20795-2※1MPa>1650
吸水量DIN EN ISO 20795-2※1μg/mm3<32
溶解量DIN EN ISO 20795-2※1μg/mm3<5
硬度Shore D>82
生体適合性DIN EN ISO 10993-1※2準拠

※1 Dentistry – Part 2: Orthodontic base polymers (in accordance with the norm at room temperature)
※2 Biological evaluation of medical devices – Part 1: Evaluation and testing within a risk management process



製品番号製品名
03989Freeprint® ortho UV

製品名:Detax 3D Printスプリント用材料
医療機器届出番号:13B1X10100000079

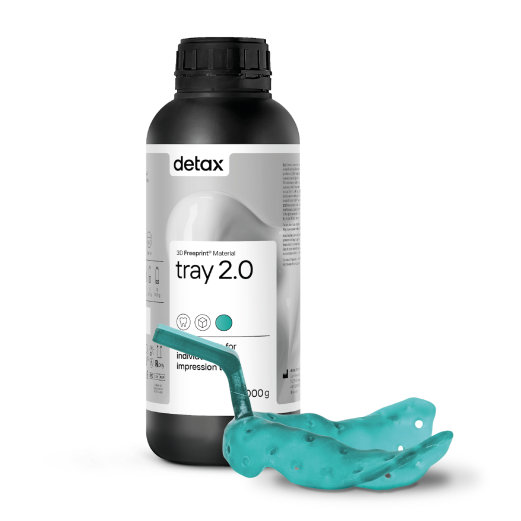

 カスタムトレー

Freeprint® tray

項目規格単位測定値
曲げ強度DIN EN ISO 178※1MPa>90
曲げ弾性率DIN EN ISO 178※1MPa>1900
硬度Shore D>84
生体適合性DIN EN ISO 10993-1※2準拠

※1 Plastics – Determination of fl exural properties (in accordance with the norm at room temperature)
※2 Biological evaluation of medical devices – Part 1: Evaluation and testing within a risk management process



製品番号製品名
02505Freeprint® tray 2.0

製品名:Freeprint tray(フリープリント トレー)
医療機器届出番号:13B1X10100000068

製造元:DETAX GmbH & Co. KG(Germany)
